silkworm cocoon processing machinery

Silkworm cocoon opening machine

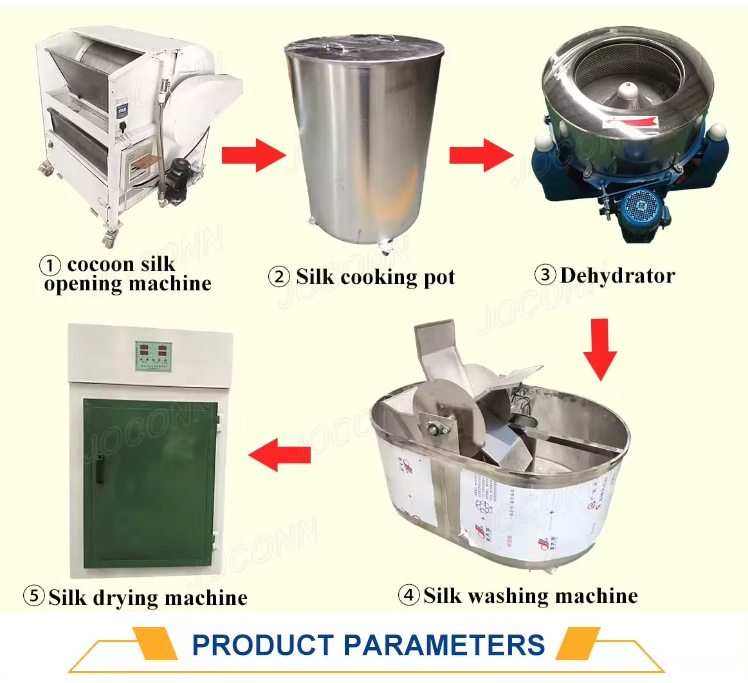

The cocoons silk filature reeling production line is to get silk from silkworm cocoon, the production line mainly consists of 5 machines:

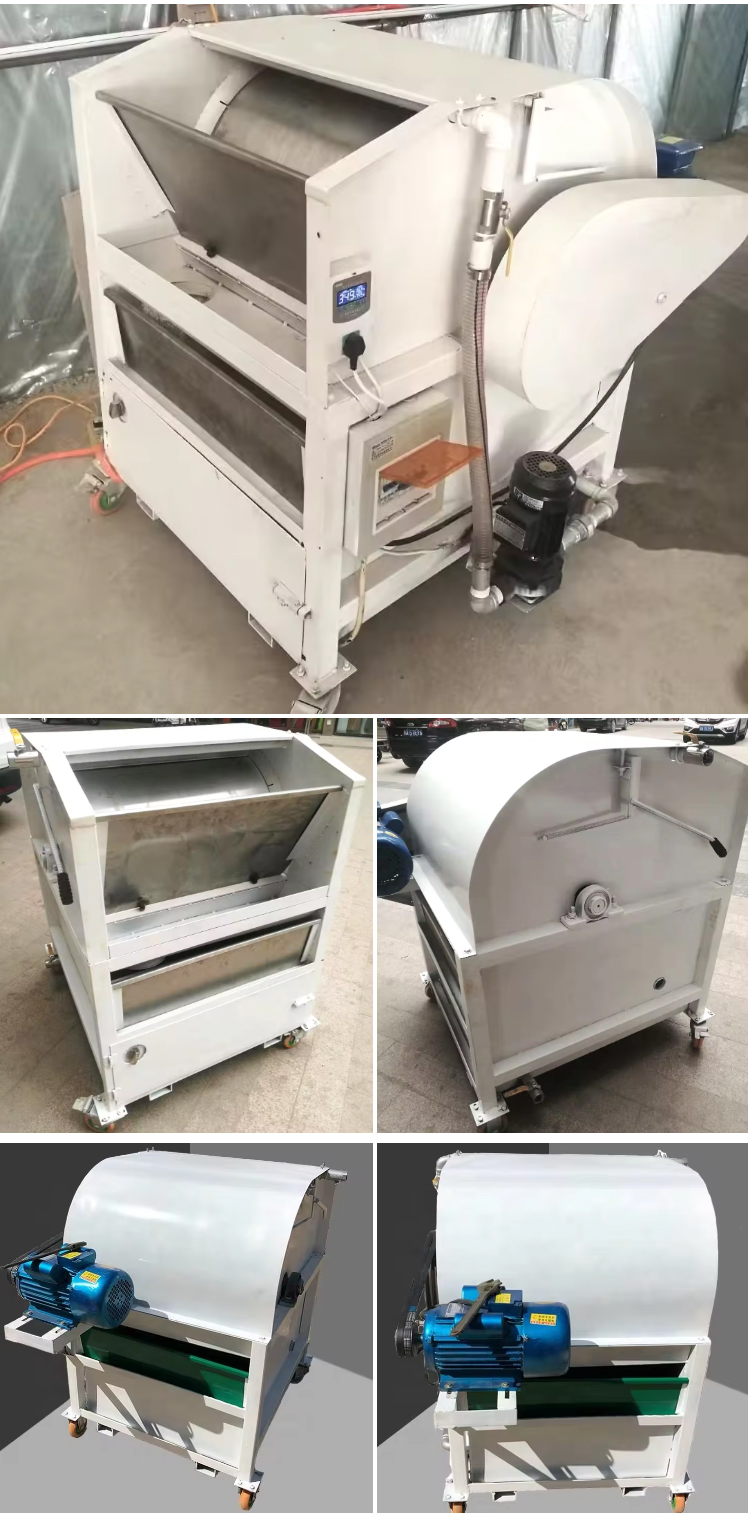

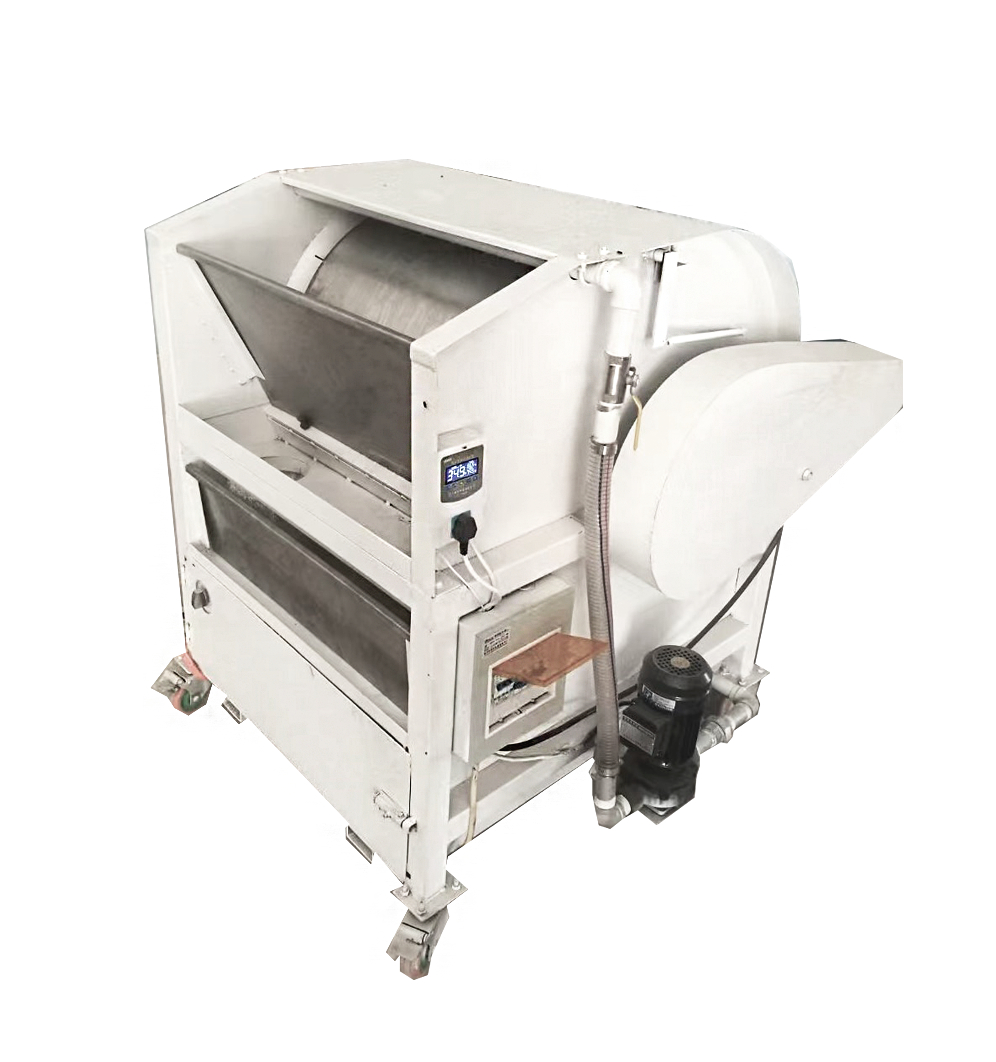

1.	cocoon silk opening machine:for silk spinning and removing pupae

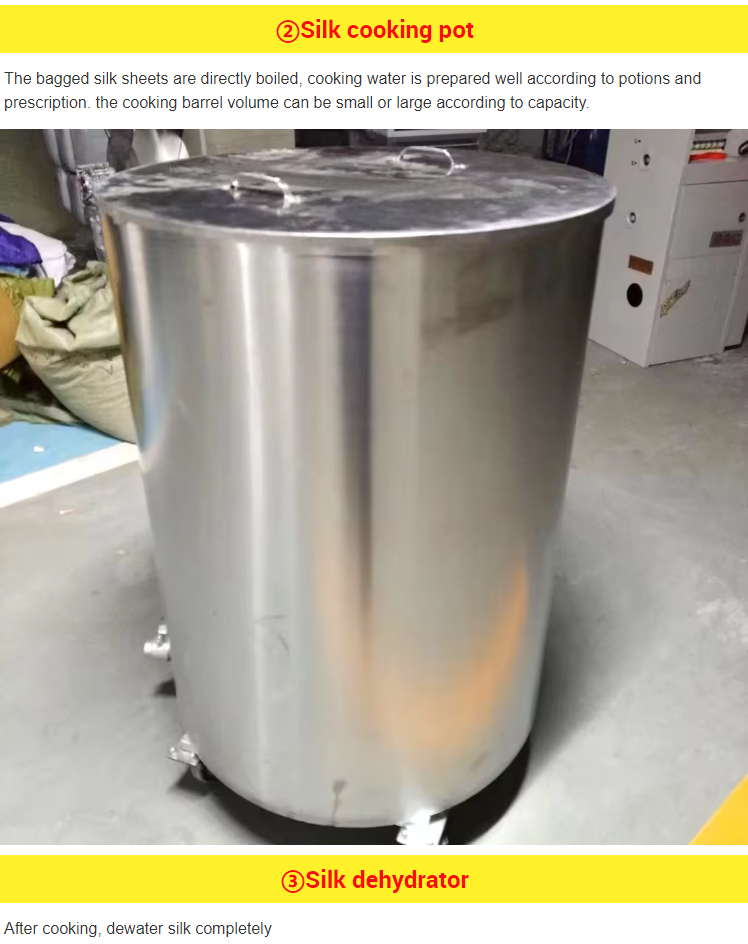

2.	silk cooking pot: for silk cooking and bleaching
3.	silk dehydrator: for silk rinsing and drying

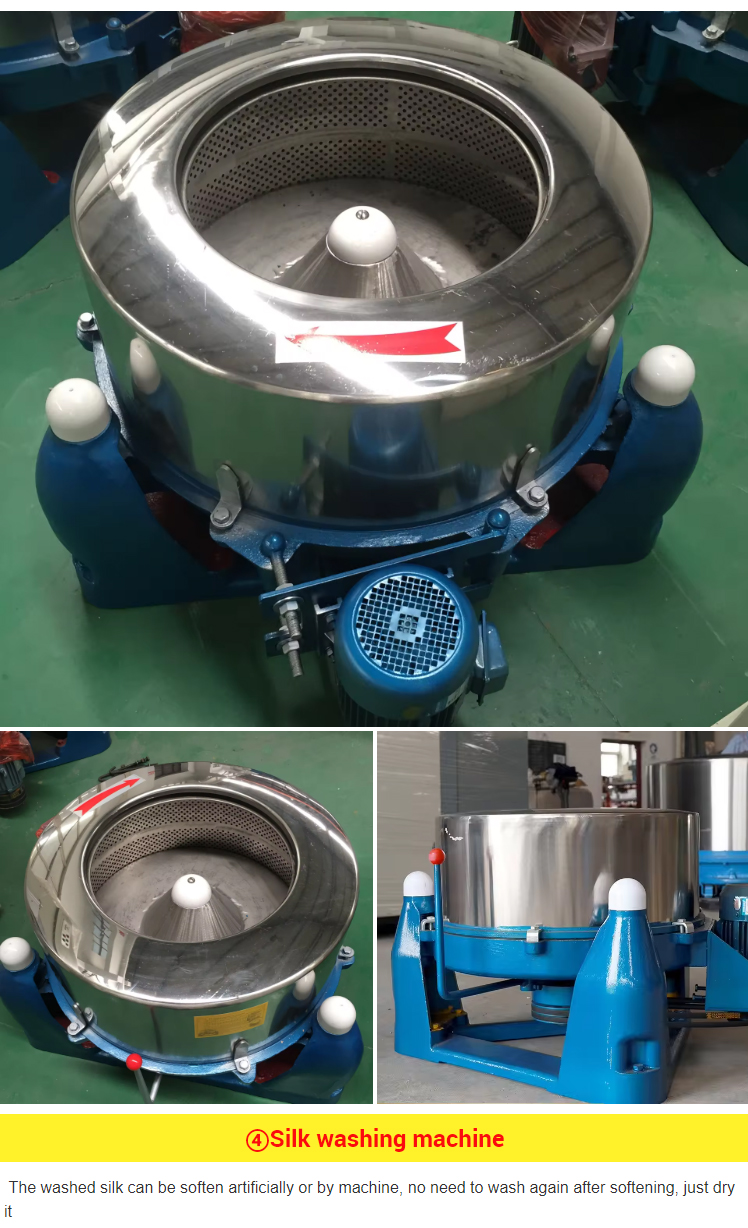

4.	silk washing machine: for silk softening

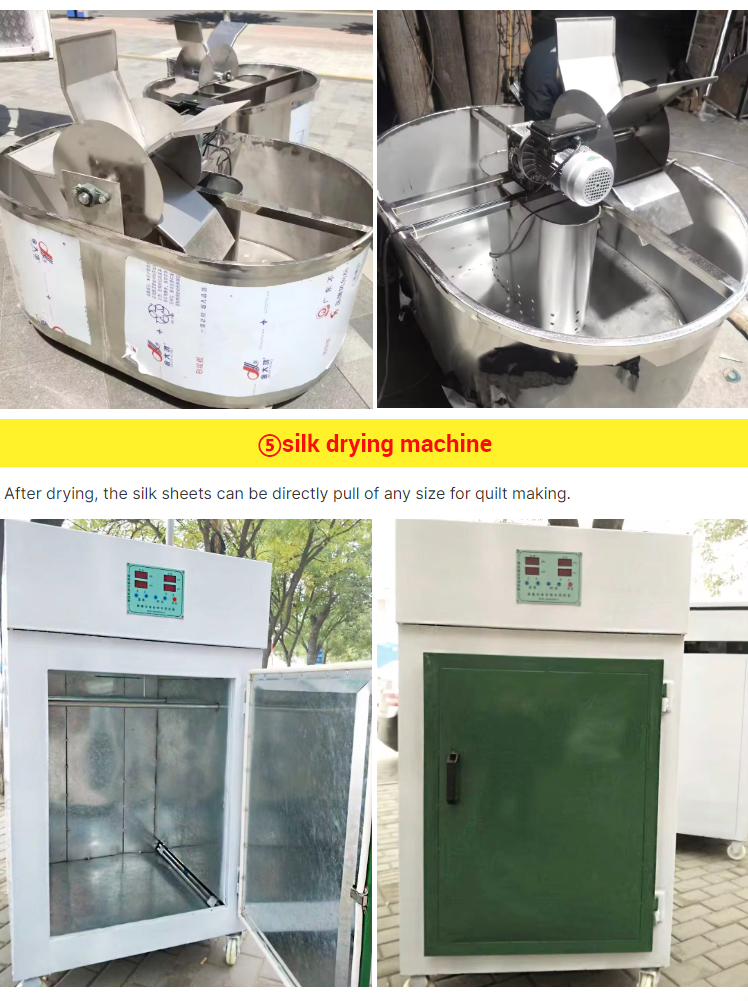

5.	silk drying machine: for silk drying

Name	Specification	power	Weight	size
①cocoon silk opening machine	Drum diameter:640mm Drum length:800mm	4kw/380v	175kg	11001100130mm
②silk cooking pot	Diameter:1500mm	3kw	150kg	150015001400mm
③silk Dehydrator	Drum diameter:600mm Barrel height:280mm	3kw	450kg	10001000750mm
④silk washing machine		0.75kw	150kg	1800800500mm
⑤silk drying machine	Max. Temperatuer: 200 °C	4kw+0.75kw	120kg	700700800mm

1	The silk reeling machine occupies a small area, only needs an area of 10 square meters to operate, and it will not shift during use.
2	Each machine is tested for dynamic balance before leaving the factory, which can reduce vibration and noise to a minimum.
3	The silk production speed is 8-15 minutes per piece, and each piece is 1.5 catties. The operation is simple, safe and reliable.The silk reeling machine can be operated by one person without a boiler. It also has its own water circulation equipment.
4	The silk reeling machine is an indispensable equipment for making silk quilts. In addition, the size of this machine can also be customized according to customer needs
